Male Adapter, 3 in Conduit, PVC

Types of Conduit Fittings

Male Adapters

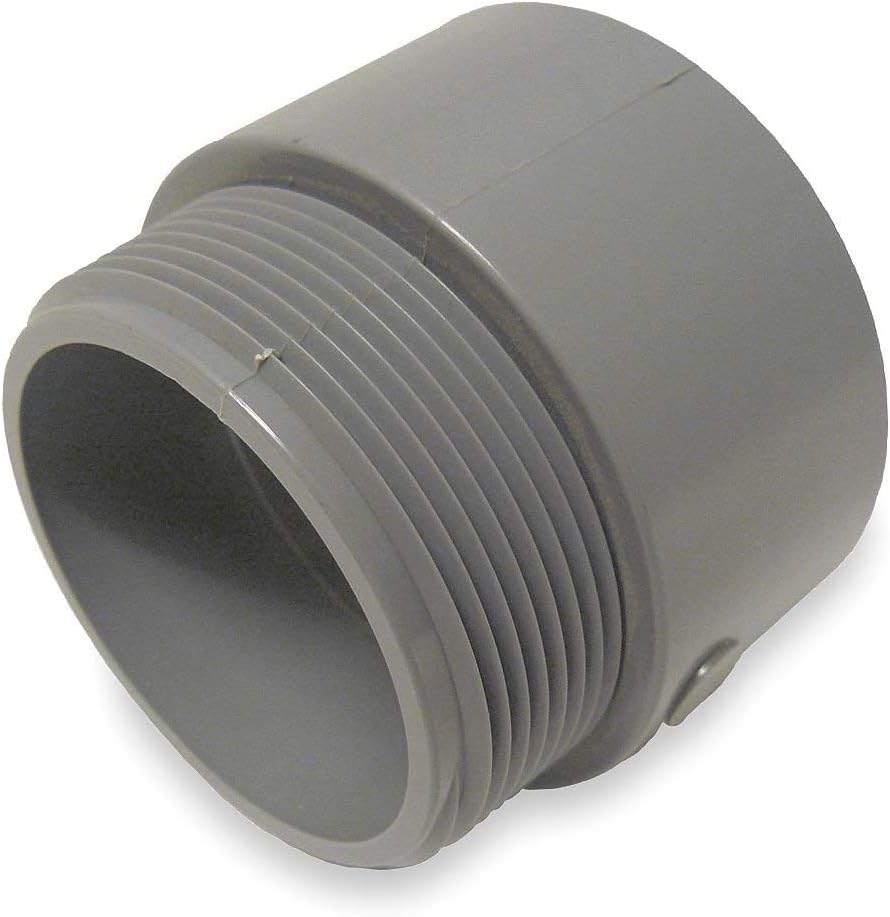

Male adapters feature external threads that mate with female-threaded hubs or couplings. They are commonly used to transition from conduit to enclosures, panelboards, or other threaded fittings. This 3-inch PVC male adapter is designed for uses with rigid PVC conduit (schedule 40 or 80) and meets UL 514B standards.

Couplings

Couplings join two pieces of conduit end-to-end. They can be threaded or slip-on, depending on the conduit type. For PVC conduit, solvent-weld couplings are typical, but threaded couplings are also available.

Connectors

Connectors attach conduit to electrical boxes or enclosures. Unlike adapters, connectors often include a locknut and may be threaded or compression-style. For example, a set-screw connector grips the conduit with screws.

Bushings and Adapters

Bushings protect wire insulation at conduit ends, while adapters change thread sizes or transition between different conduit materials. This product is a male adapter specifically for transitioning from PVC conduit to a threaded female hub.

How to Choose the Right Conduit Fitting

Selecting the correct fitting is crucial for a safe and efficient electrical system. Consider the following factors:

• Conduit Material: This adapter is for PVC conduit. Ensure your conduit is also PVC to match the material and solvent-weld compatibility.
• Size: Conduit size is measured by trade size. This fitting is for 3-inch conduit, both ends are 3-inch threads. Check the hub or female fitting size.
• Type of Connection: Male adapters are used when threading into a female hub. If you need to connect to a box with a knockout, you might need a connector instead.
• Regulatory Compliance: This fitting is UL listed, meeting UK wiring regulations (BS 7671) requirements for electrical installations. Always consult local codes and a qualified electrician.

Installation Tips

Installing a PVC male adapter involves several straightforward steps:

1. Cut the PVC conduit square and deburr the end.
2. Apply PVC r to the outside of the conduit and inside of the adapter.
3. Apply solvent weld cement to both surfaces and quickly insert the conduit into the adapter, twisting slightly.
4. Hold for a few seconds to bond. For the threaded end, apply PTFE tape or pipe thread compound before threading into the female hub.
5. Hand tighten plus a quarter turn with a wrench. Do not overtighten to avoid cracking.

Always allow solvent weld to per manufacturer instructions before applying pressure.

What Are Conduit Fittings?

Conduit fittings are essential components in electrical installations, used to connect, terminate, or route conduit systems. They ensure see and regulation-compliant connections between conduit sections, boxes, or equipment. The male adapter is a specific type of fitting that allows a threaded connection from a conduit to a hub or female-threaded opening.

Frequently Asked Questions

Can this male adapter be used with metal conduit?

No, this adapter is designed specifically for PVC conduit. Using it with metal conduit will not create a proper bond and may violate regulations.

What is the temperature rating?

PVC conduit fittings typically have a maximum operating temperature of around 140°F (60°C). For higher temperatures, consider metal fittings.

Is this fitting suitable for underground uses?

PVC conduit and fittings are commonly used in underground installations provided they are rated for such uses and installed in accordance with UK regulations. Check that your specific PVC conduit schedule matches the application. This fitting is not listed for direct burial unless part of a complete PVC conduit system with appropriate sealing.

Do I need a separate bushing?

A bushing may be required at the threaded end to protect wires from sharp edges, especially if the hub is not smooth. This depends on local wiring regulations.
