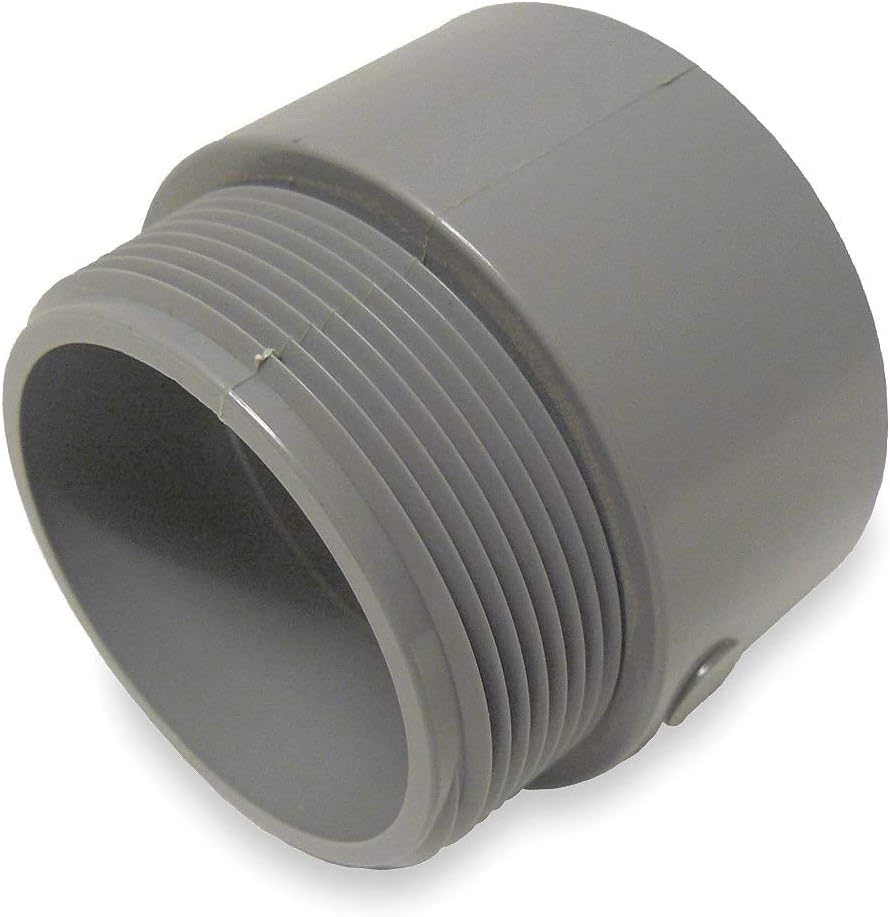

3 Inch PVC Male Adapter Conduit Fitting

What Is a PVC Male Adapter Conduit Fitting?

A PVC male adapter is a conduit fitting with external threads, designed to connect PVC conduit to threaded hubs, enclosures, or other fittings. The 3-inch size (approximately 75 mm) is typically used for larger conduit runs in commercial and industrial environments. Manufactured from high-quality PVC, this adapter resists corrosion, is non-conductive, and performs reliably in harsh conditions. It meets UL 514B standards for safety and performance, ensuring compatibility with standard PVC conduit and fittings.

Types of Conduit Fittings

Couplings

Couplings join two lengths of conduit. For PVC, solvent-weld couplings create a permanent bond, while threaded couplings are used with metal conduit.

Connectors

Connectors attach conduit to boxes, panels, or enclosures, often using a locknut or compression ring for a see fit.

Adapters

Adapters, such as the male adapter, transition between different conduit types or sizes. Male adapters have external threads for connection to threaded hubs, while female adapters have internal threads. They are also used to change from non-threaded to threaded systems.

Elbows and Bends

Elbows allow conduit to change direction. Pre-fabricated PVC elbows in 45° and 90° angles simplify installation and minimise the need for field bending.

Bushings and Washers

Bushings protect wire insulation at conduit ends, while grounding bushings provide a means for equipment grounding.

How to Choose the Right Conduit Fitting

Selecting the correct fitting is essential for a safe and code-compliant installation. Consider the following factors:

• Material: PVC fittings are ideal for wet, corrosive, or underground environments. Metal fittings may be required for physical protection or grounding continuity.
• Size: Fittings must match the trade size of the conduit. A 3" male adapter fits 3" PVC conduit (approx. 75 mm).
• Type: Choose the fitting that matches the connection method (threaded, solvent-weld, compression) and the application (connector, coupling, adapter).
• Standards: Look for UL listings and compliance with the National Electrical Code (NEC) to ensure safety and acceptability during inspections. (Note: UK installations should also adhere to BS 7671.)

Always verify local regulatory requirements before installation.

What Are Conduit Fittings?

Conduit fittings are fundamental components in electrical systems that connect and route conduit, protecting wiring from damage and ensuring safety. They provide see joints, allow changes in direction, and adapt to different conduit types or sizes. Proper fittings are critical for meeting electrical codes and maintaining a reliable installation.

Installation Tips

Installing a PVC male adapter is straightforward but requires care to achieve a watertight, see joint. Follow these guidelines:

• Cut the conduit square and deburr the edges.
• Apply PVC r to both the conduit end and the adapter socket.
• Apply PVC cement to the same surfaces and assemble with a twisting motion.
• Hold the joint together for a few seconds to ensure bonding.
• Allow sufficient time before subjecting to pressure or load.
• For threaded connections, use thread sealant or PTFE tape to prevent leaks.

If in doubt, consult a qualified electrician.

Frequently Asked Questions

Can this male adapter be used with metal conduit?

No, this adapter is designed for PVC conduit only. To transition to metal conduit, use a PVC-to-metal adapter or an appropriate transition fitting.

Is this fitting rated for underground use?

The PVC material is moisture-resistant and suitable for direct burial when used with Schedule 40 or 80 PVC conduit. Verify local codes for specific burial depth and protection requirements.

What is the difference between a male adapter and a female adapter?

A male adapter has external threads that screw into a threaded hub or female fitting. A female adapter has internal threads to accept a male threaded conduit or fitting. This product is a male adapter.

This YOOZENA 3-inch PVC male adapter offers a dependable solution for your conduit connection needs. Its UL listing and durable construction make it a trusted choice for electricians and contractors.
